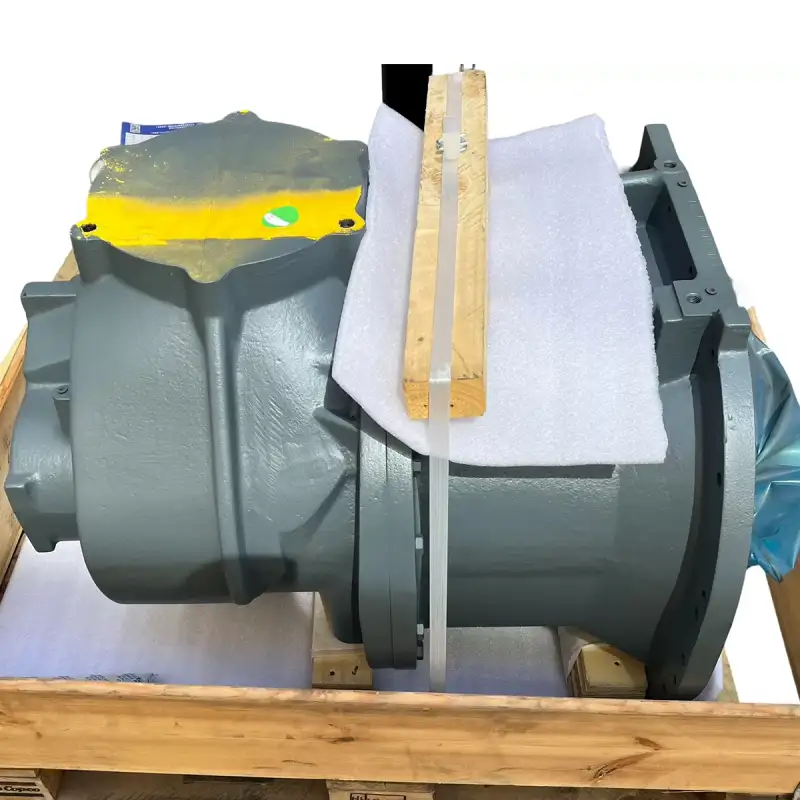

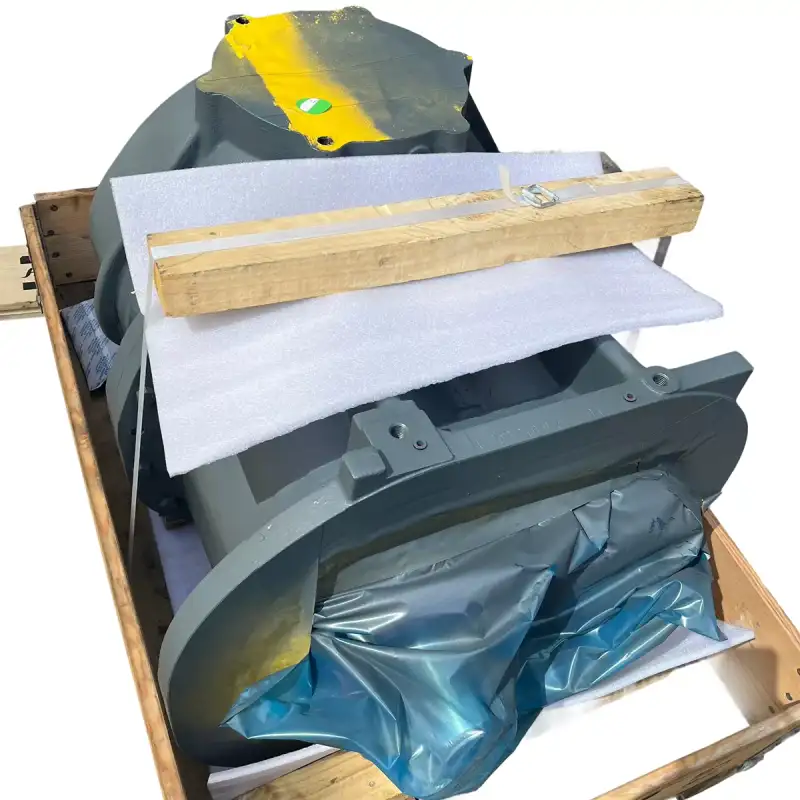

Atlas Copco OIS Q-05 / C242 Service Stage – 1616 7540 90
Quick Specs
– Brand: Atlas Copco
– Part Number: 1616 7540 90
– Description: OIS Q-05 / C242
– Type: Compressor Stage
– Condition: Genuine New
– Availability: On Request
Ready to order or need a lead time quote?
Our team responds within 24 hours.
WhatsApp: +86 176 2510 0968
Atlas Copco 1616-7540-90 is an OIS Q-05 / C242 compressor stage for oil-injected screw compressor systems. The OIS Q-05 / C242 designation identifies the specific compression stage, while the two part-number references are useful when matching the component with Atlas Copco service and procurement records.
For physical identification, the corresponding air-end reference is 1616-7540-80, while 1616-7540-90 is used as the ordering or system reference. Both numbers should therefore be considered when checking an existing unit, particularly when the number on the air-end nameplate differs from the number shown in a parts or purchasing system.
As a complete compressor stage, identification should not rely on the part number alone when replacing an installed unit. The OIS Q-05 / C242 code, compressor model and serial number, and the physical configuration of the existing stage should be checked before ordering to confirm the correct air-end assembly.
Technical Details
| Part Number | 1616754090 |
| Description | OIS Q-05 / C242 |
| Brand | Atlas Copco |
| Status | Original |
| Condition | New |
| Weight | 760kg |
| Dimension | 1220*690*660mm |
| Application | Oil-Injected Screw |
| Packaging | Wooden crate |
| Availability | On Request |
| Country of Origin | Belgium |
Equivalent / Superseded Part Numbers
– 1616706681
– 1616706692
– 1616706682
– 1616754080 (Nameplate Part Number)
Always confirm against your compressor’s nameplate part number before ordering, as Atlas Copco may use this element across multiple production batches or regional variants.
Signs Your Air End Needs Replacement
Consider replacing the air end if you notice:
– A gradual drop in discharge pressure or airflow at the same load
– Rising discharge air or oil temperature without a clear cause
– Increased vibration or unusual noise from the compression chamber
– Rising energy consumption for the same output over time
These symptoms typically point to internal wear — rotor clearance, bearing wear, or seal degradation — rather than a component elsewhere in the airend package.
Common Questions
How do I confirm this is the correct part for my compressor?
Send us the part number and a photo of the compressor nameplate. We will verify compatibility before issuing a quotation.
How long does delivery take?
Lead time depends on stock availability at the time of order. We confirm the exact timeline within 24 hours of your inquiry.
Can I install this myself?
Air end replacement requires precision alignment and commissioning. We recommend a qualified compressor technician perform installation to protect warranty coverage and ensure correct fitment.
Is there a minimum order quantity?
Minimum order quantity is 1 unit.
What payment methods do you accept?
T/T (bank transfer).
Do you inspect parts before shipment?
Yes. We provide full photos and video of the actual item before shipment, and confirm everything is correct with you prior to dispatch.
What shipping options are available?
If you have your own freight forwarder, we can ship to them directly. If not, we can provide shipping options based on your preference.
Are these genuine parts?
Yes. Parts are sourced through Atlas Copco distributor channels.
