Atlas Copco Controller – 1092 0056 91
Quick Specs
– Brand: Atlas Copco
– Part Number: 1092 0056 91
– Description: Controller
– Condition: Genuine New
– Availability: In Stock
A failed controller effectively takes the whole compressor off line,which puts more pressure on sourcing quickly compared to most other spare parts.
Controllers we list as in stock are ready to ship immediately — worth checking before assuming you ‘re facing a long lead time on top of the downtime you ‘re already dealing with.

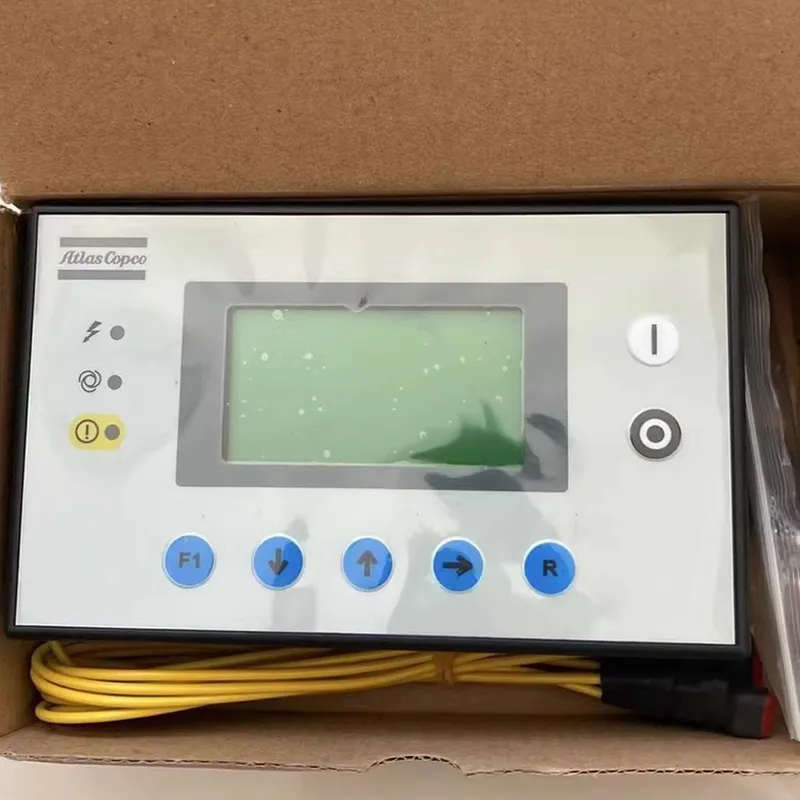

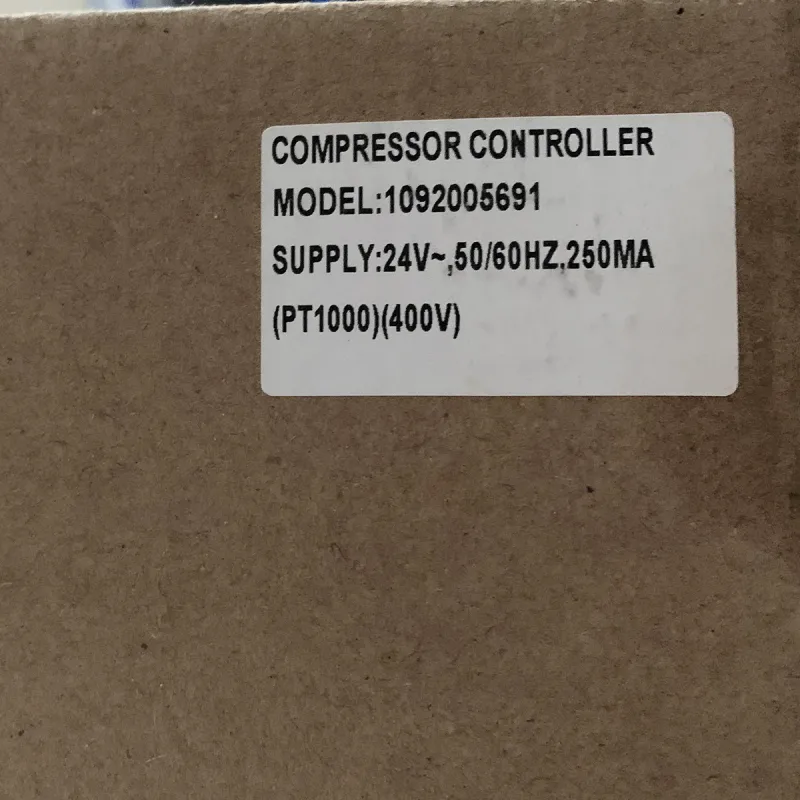

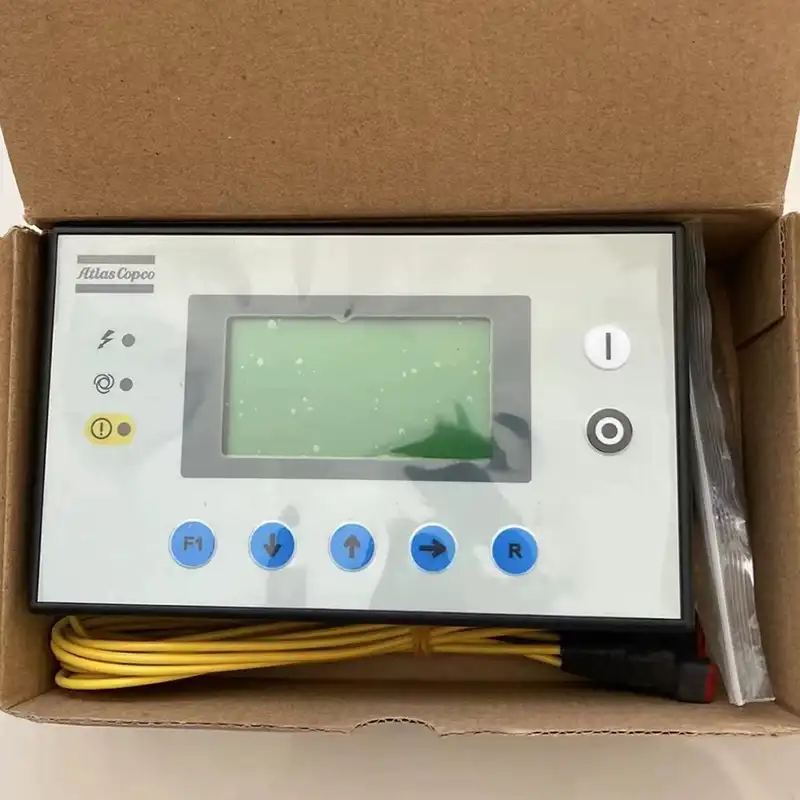

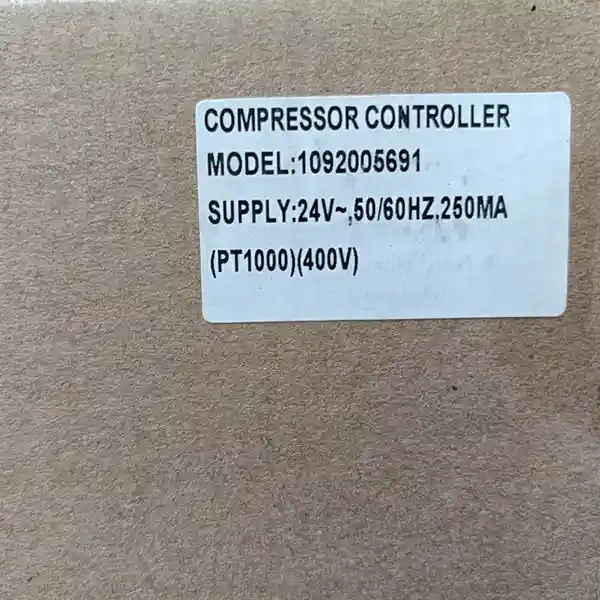

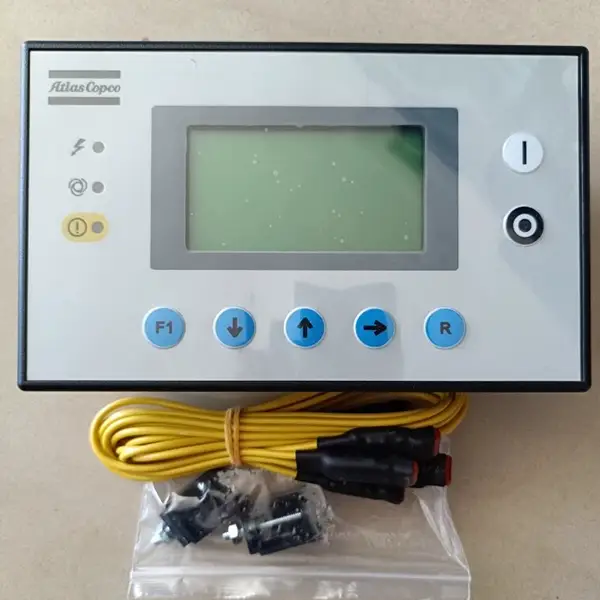

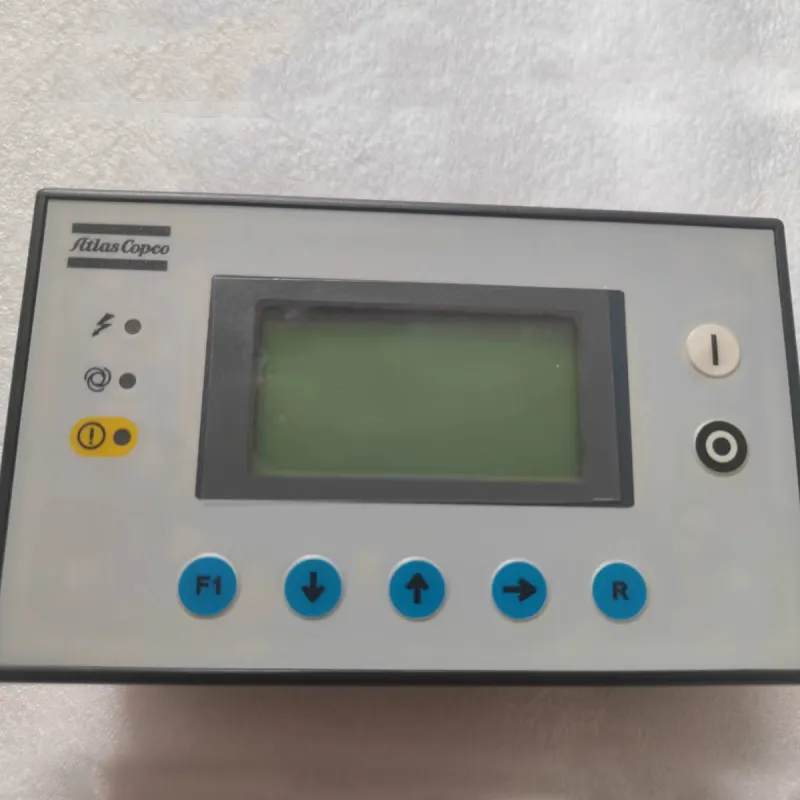

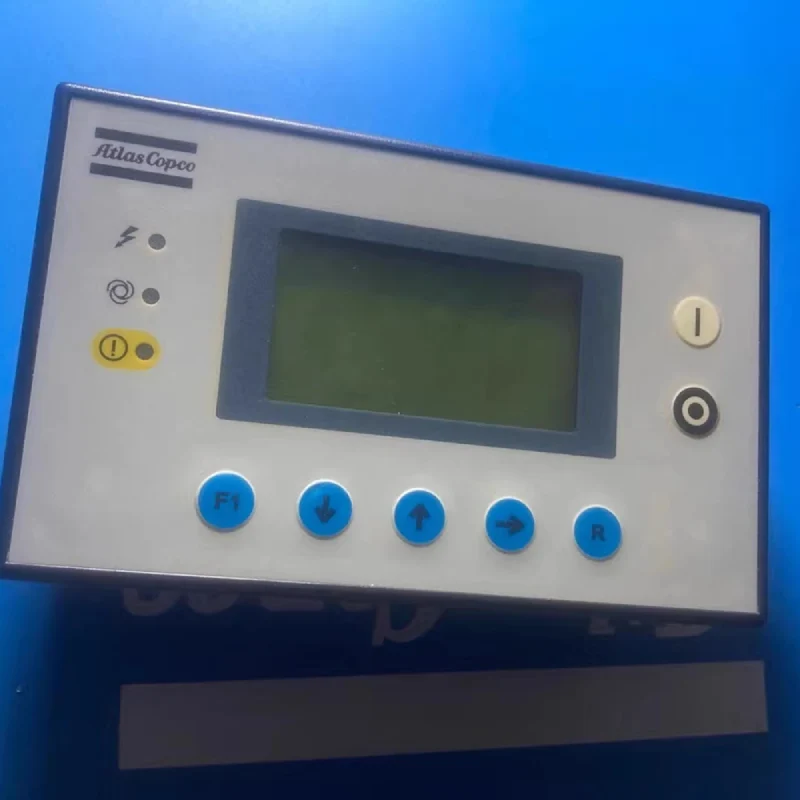

The 1092-0056-91 is a genuine Atlas Copco compressor controller with a 24V / 50-60Hz supply and 250mA rated current. The PT1000 input indicates this unit interfaces directly with platinum resistance temperature sensors — the standard for oil-injected screw compressor thermal monitoring in earlier Atlas Copco generations.
This is a compact panel-mount module. As with any Atlas Copco controller, installation is only part of the process — commissioning and configuration through Atlas Copco’s authorized service software is required to match it to your compressor’s specific parameters, not a simple plug-in replacement.
Technical Details
| Part Number | 1092005691 |
| Description | Controller |
| Brand | Atlas Copco |
| Status | Original |
| Condition | New |
| Weight | 0.43kg |
| Dimension | 17*12*5cm |
| Supply | 24V / 50-60Hz |
| Packaging | Box |
| Availability | In Stock |
| Country of Origin | China |
Recommended Application
Oil-injected screw compressors (PT1000 sensor interface)
Installing the Controller Is Only Part of the Job
Unlike most spare parts,a replacement controller isn ‘t functional simply by wiring it in — it needs to be commissioned and configured to match your specific compressor model,sensors,and operating parameters.Atlas Copco performs this through dedicated configuration software that requires official credentials and authorization,meaning a qualified technician with the right access — not just the physical part — is what actually gets the compressor running correctly again.If you don ‘t already have a technician lined up for commissioning,it ‘s worth arranging that before the part arrives,so the compressor isn ‘t sitting idle waiting on the second half of the job.
Before Assuming the Controller Itself Has Failed
A blank screen,garbled display,or unresponsive buttons don ‘t always mean the controller board itself has failed — a loose connection,a failing power supply module,or voltage fluctuation upstream can produce similar symptoms.If possible, checking the power supply to the controller and any visible connector/cable condition before ordering can save you from replacing a part that wasn ‘t actually the problem.
Common Questions
How can I get help figuring out if the controller has failed?
A photo or short video of the current screen behavior (blank,garbled,frozen,or showing an error code) is often the fastest way for us to help assess the situation — send it via WhatsApp or Email along with your compressor model.
Will this controller work as soon as it 's installed?
No — it needs to be commissioned and configured to your compressor ‘s specific parameters,which requires Atlas Copco service software and authorized access.We ‘d recommend having a qualified technician arranged before the part arrives.
How do I confirm which controller generation I need?
Check your existing controller ‘s label or your compressor ‘s nameplate,or send us a photo and we ‘ll confirm the exact match before you order.
My compressor has an older controller (Mk4 or earlier) —is it still supported?
Parts availability for older generations is becoming more limited.If yours is showing signs of failure,it ‘s worth checking availability and reviewing your options sooner rather than after a full failure.
Are these genuine Atlas Copco parts?
Yes.Parts are sourced through Atlas Copco distributor channels.
Do you verify the part before shipping,given the value of these components?
Yes — for controllers,we provide detailed photos and video of the actual unit before shipment and confirm the exact match against your compressor details,given how critical and often costly these parts are.
What shipping options are available?
If you have your own freight forwarder, we can ship to them directly. If not, we can provide shipping options based on your preference.
