Atlas Copco Electr.Drain LD200T V.24/50-60 – 2202 8159 31
Quick Specs
– Part Number: 2202 8159 31
– Description: Electr.Drain LD200T V.24/50-60
– Product Status: Original
– Availability: In Stock
Electrical component failures often mean unplanned downtime.If this is urgent,contact us directly via WhatsApp — we prioritize same-day quotes for time-sensitive requests.

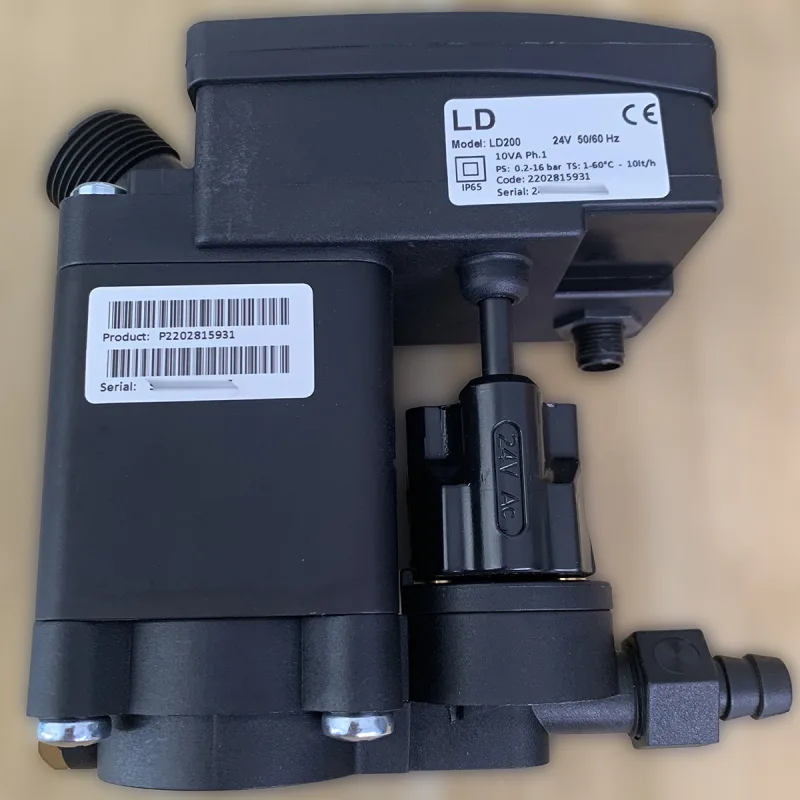

The Atlas Copco Electr.Drain LD200T V.24/50-60 (part no. 2202-8159-31, model LD200T) is a genuine electronic drain valve. Rated 24V, 50/60Hz, 10VA single-phase, with a working pressure range (PS) of 0.2-16 bar and operating temperature (TS) of 1-60°C, it discharges condensate at up to 10 L/h with IP65 ingress protection.
Technical Details
| Part Number | 2202815931 |
| Description | Electr.Drain LD200 |
| Brand | Atlas Copco |
| Product Status | Original |
| Voltage/Power | 24V, 50/60Hz, 10VA |
| Weight | 0.97kg |
| Dimension | 14*13*7cm |
| Working Pressure | 0.2-16 bar |
| Drain Flow Rate | 10 L/h |
| Availability | In Stock |
| Country of Origin | Italy |
Equivalent / Replaced Part Numbers

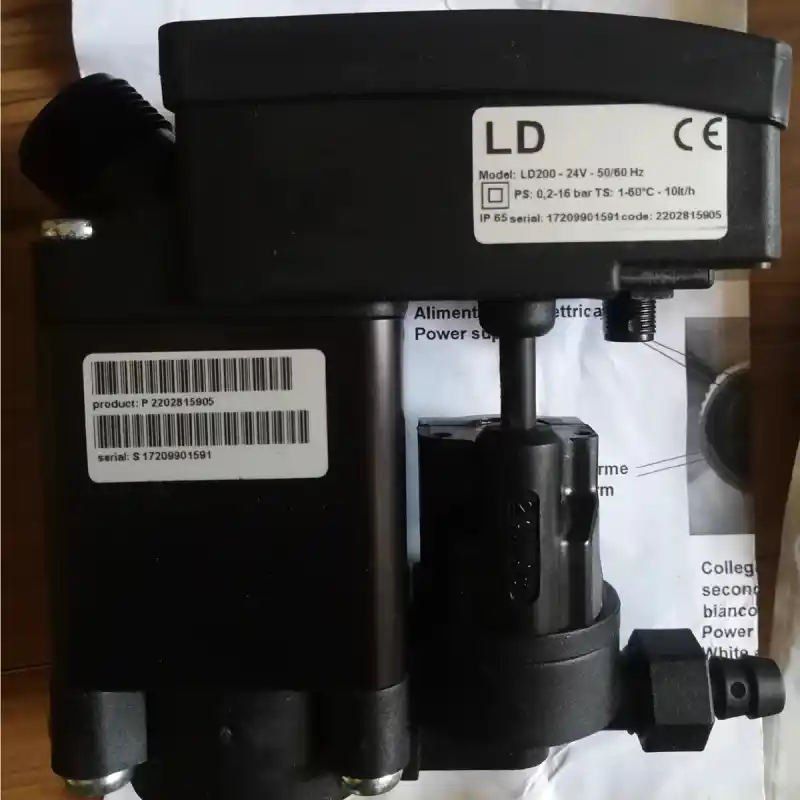

– 2202815905
Compatibility and part numbers are for reference only.
Two Opposite Failure Modes
Two Very Different Ways This Can Fail
An electronic drain valve can fail in two opposite directions, and each carries a different cost.If it sticks open,compressed air continuously escapes through the drain line — a quiet,ongoing energy loss that often goes unnoticed until an energy audit or a compressor running harder than expected flags it.If it sticks closed,condensate has nowhere to go:
water accumulates in the receiver,dryer,or filter housing,risking corrosion,and in some cases carrying over into the compressed air line itself.Neither failure mode announces itself with an alarm on most systems – periodic inspection of the drain cycle is the most reliable way to catch either one early.
Confirm Voltage and Connection Size Before Ordering
Drain valves are specified for a particular voltage and pipe connection size,and a mismatch isn ‘t always visible from the part alone.Check your existing valve ‘s nameplate or your system ‘s electrical specification before ordering,rather than matching by appearance.
Common Questions
How do I know if my drain valve has failed?
Continuous air loss from the drain line (a hissing sound) usually means it ‘s stuck open.Water pooling in the receiver,dryer,or downstream filter housing usually means it ‘s stuck closed or the drain cycle isn ‘t triggering.
Should I check anything before replacing the valve?
Yes — a blocked inlet strainer is a common cause of drain issues and is worth ruling out first,since it ‘s a simpler fix than a full valve replacement.
Are these Atlas Copco genuine parts?
Yes. Parts are sourced through Atlas Copco distributor channels.
What payment methods do you accept?
T/T (bank transfer).
What is the typical lead time?
Common consumables (filters, oil) typically ship within about 1 week. Lead time for other spare parts depends on stock availability — please contact us for a confirmed schedule.
Do you inspect parts before shipment?
Yes. We provide full photos and video of the actual item before shipment, and confirm everything is correct with you prior to dispatch.
What shipping options are available?
If you have your own freight forwarder, we can ship to them directly. If not, we can provide shipping options based on your preference.
Can you expedite shipping if this is an active issue?
Yes — if you ‘re dealing with continuous air loss or water accumulation,let us know it ‘s urgent and we ‘ll prioritize the quote and shipping arrangement.
