Atlas Copco Oil filter kit RXD Food grade – 3001 1602 12
Quick Specs
– Part Number: 3001 1602 12
– Description: Oil filter kit RXD Food grade
– Product Status: Original
– Availability: In Stock
Ready to order or need a lead time quote?
Our team responds within 24 hours.
WhatsApp: +86 176 2510 0968

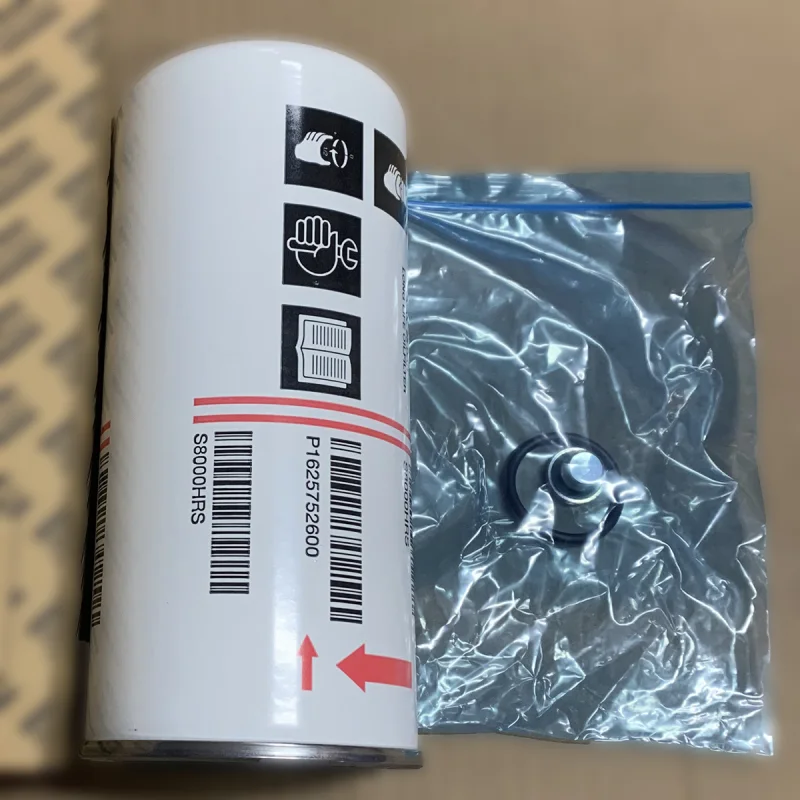

The 3001-1602-12 is Atlas Copco’s genuine oil filter kit built around the RXD food-grade oil formulation, confirmed by Atlas Copco’s own regional catalog under the same “Oil filter kit RXD Foodgrade” name. Independent cross-references tie it to the same GA18-37 VSD filter base (1625-7526-00) used across Atlas Copco’s standard GA18-37 range, applied here for food-grade compliant operation — relevant for facilities like food processing plants where oil-carryover standards are stricter. It’s listed as equivalent to 3001-1602-11. Kits in this class are commonly serviced on a 4,000-hour or 1-year interval, though we’d recommend confirming the exact interval for your specific compressor configuration.
Technical Details
| Part Number | 3001160212 |
| Description | Oil filter kit RXD Food grade |
| Brand | Atlas Copco |
| Product Status | Original |
| Service Life | 4000 hours |
| Weight | 0.93kg |
| Dimension | 21*9*9cm |
| Application | GA18-GA37 VSD |
| Packaging | Box |
| Availability | In Stock |
| Country of Origin | Belgium |
Equivalent / Replaced Part Numbers
– 3001160211
Compatibility and part numbers are for reference only.
What Happens When the Filter Clogs?
Oil filters include a bypass valve that opens once the filter becomes too restricted,allowing oil to keep flowing — unfiltered — rather than starving the compressor of lubrication.This is a safety mechanism,but it also means a clogged filter can go unnoticed:
the compressor keeps running normally,while unfiltered oil (and whatever contaminants it ‘s carrying)circulates through the bearings and rotor.Unlike an air filter,where reduced airflow is a gradual,detectable symptom,a bypassed oil filter often shows no obvious sign until wear damage has already occurred — which is why sticking to the replacement interval matters more here than waiting for a visible cue.
Don 't Over-Tighten the New Filter
It ‘s a common instinct to tighten a new filter as much as possible,assuming a tighter seal is a safer one — but oil filters are designed for a specific installation torque,typically “hand-tight plus a partial turn”rather than tightened with a wrench.Over-tightening compresses the gasket beyond its intended range,which can deform the seal and create a leak path rather than prevent one.It also makes the filter far harder to remove at the next service,sometimes damaging the housing threads in the process.
If your filter ‘s packaging or the compressor manual specifies a torque value or turn count,follow that rather than tightening by feel.
Common Questions
What happens if I don 't change the filter on time?
The bypass valve will eventually open,letting unfiltered oil circulate.The compressor keeps running,but bearing and rotor wear can accelerate without any obvious warning sign.
Can I use a non-genuine filter with genuine oil,or vice versa?
Mixing is common in practice,but bypass valve calibration and filtration performance can differ between brands — worth ruling out as a variable if you ‘re troubleshooting an oil-related issue.
